The Brunton GEO Lite Transit compass is a geologist's baseplate compass that works like a transit! Geological measurements can be made using traditional strike-and-dip methods or strike-and-dip direction configurations. With two clinometers and a protractor on the transparent base plate, the Geo Lite is a versatile, lightweight tool for field mapping.

GEO Lite Transit Brunton Compass Features:

• Transit style direct reading azimuth system.
• Fine needle for a more precise reading.
• Fixed plumb clinometer, not affected by declination setting.
• The hinged clinometer allows dip/dip azimuth measurements.
• Built-in protractor for plotting data on a terrain map.
• Spirit level for precise measurement of strikes.
• 2˚ resolution for azimuth readings (strike azimuth, tilt, directional bearings).
• 5˚ resolution for clinometer readings.
• Brunton EverNorth Magnet resists demagnetization over time.

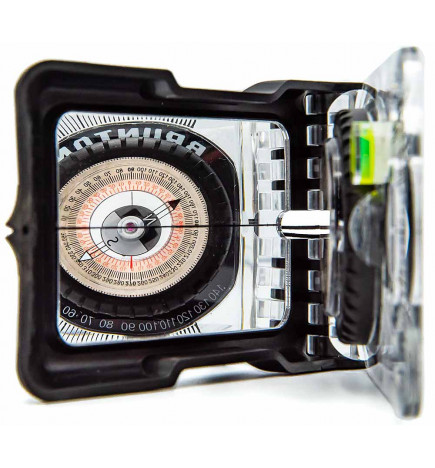

• Map magnifier. Sighting mirror for precise bearings.
• Tool-free declination adjustment.
• Romer scales included for easy integration with the portable GPS unit.
• Flat bottom for accurate low angle steering and tilt measurements.
• Hot stamped base plate for improved durability.
• PA cover filled with recycled glass for increased durability.
• Comes with a removable safety cord.
• 100% FSC certified and recyclable packaging.
• Customized pad printing on the lid is available.

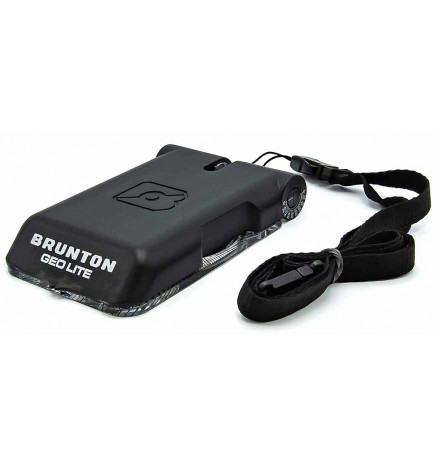

• Closed dimensions: 10.2 x 6.4 x 1.8 cm
• Weight: 83 g
• Azimuth: 2˚ graduations with ±1˚ accuracy
• Hinge clinometer: 5˚ graduations with ±2.5° accuracy
• Internal clinometer: 5˚ graduations with ±2.5˚ accuracy
• Declination adjustment: ± 180˚
• Made in Riverton Wyoming USA
